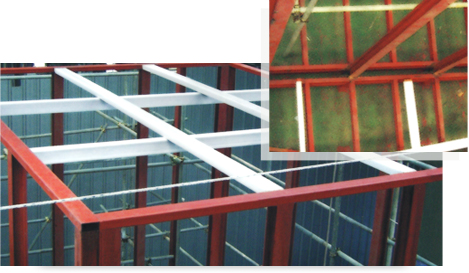

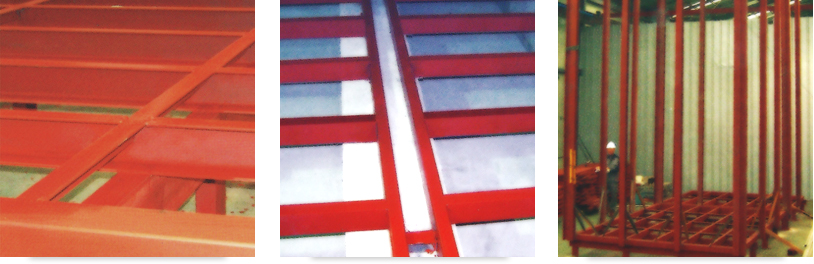

1. Installation of Foundation Frames and Framework

   For steel frames, anti-corrosion coated products are used and the tanks are manufactured to be strong enough to resist loads and water pressure. Bottom panels and angles are assembled in a latticework, allowing the panels to be arranged freely, either by length or width to minimize sagging of the connected points of the panels.

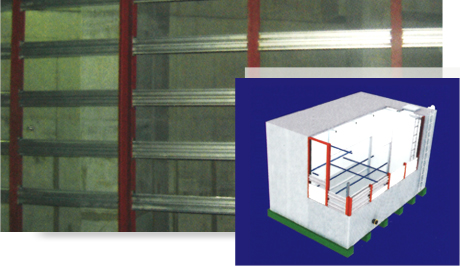

2. Partitions and Top Reinforcements

   After installing the vertical members, install the PE-coated top frames and weld the tops of the sides on the floor to help form the framework.


3.

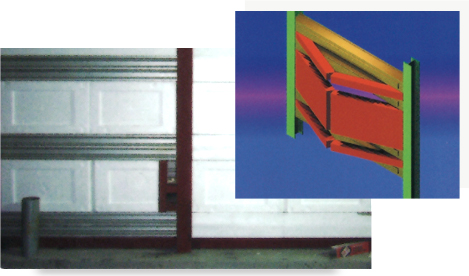

   Reinforcement of the Side Forming Panels

   Compared to other products with the same area, the tanks have more welding points to successfully resist complex external force.
4.

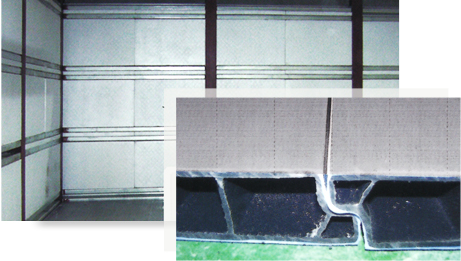

   Heat Insulating Materials

   Heat insulating materials completely filled between steel frames and panels prevent dew condensation and corrosion.
5.

   Installation of the Base Plate

   Heat insulating materials are used on the floor as the base plate.
6.

   Partitions and the Top Reinforcements

   Both sides of the panels are reinforced with H-beams and the top/bottom panels are connected with the formed plate to allow for aesthetic and strong installation of the tanks.

7. Sheet Pasting

   The areas around the corners which were difficult to be coated with sheets after installation of the panels to cause defective installation are moulded to a single structure to prevent such problems.
   •

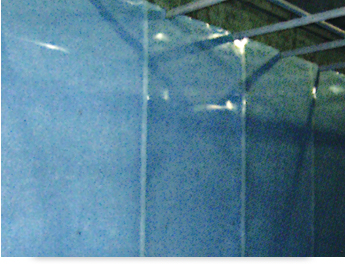

     Sheet pasting
   •

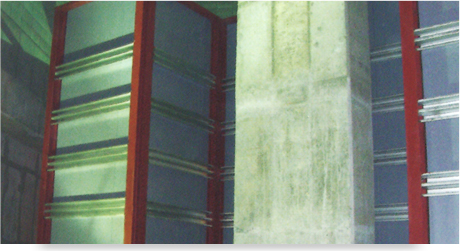

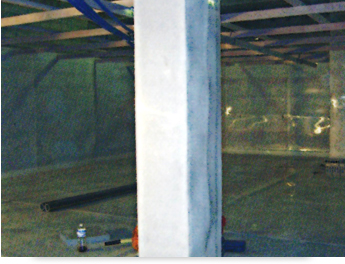

     Column lining
   •

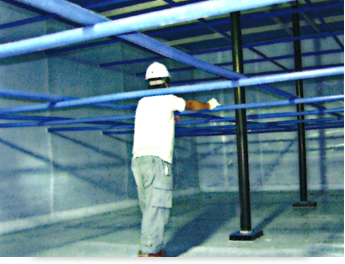

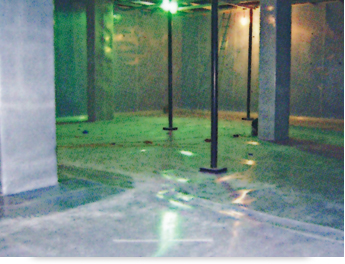

     Securing height for maintenance work
   •
     Pasting side sheets

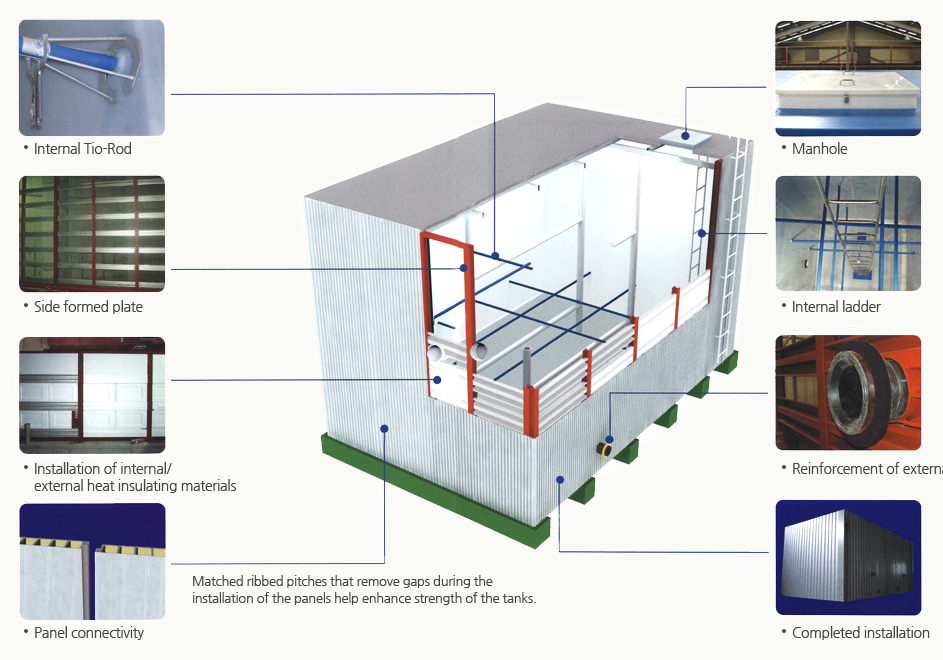

Major Features of PDF Panel Tanks
