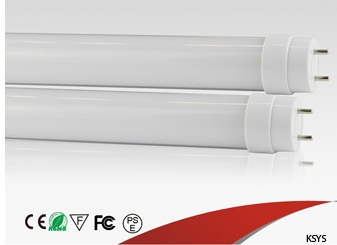

หลอด LED T8 0.6m led tube light (10W)
Details
Energy:
Energy saving up to 70% than normal fluorescent lamp
Special circuit design:
Special circuit design, each LED works separately, If one fails, it doesn’t affect other LED’s work
Special structure design with excellent heat dissipation,120 viewing angle
Warranty:
50000 hours life span, 3 years’ warranty
Power:
UL approved inner Isolated driver，PF>0.9, driver efficiency>85%
|
Part No. |
T8-10W-60 |
T8-12W-90 |
T8-20W-120 |
T8-24W-150 |
|
Rated Power |
10W |
12W |
20W |
24W |
|
Input Voltage |
AC100-240V |
AC100-240V |
AC100-240V |
AC100-240V |
|
CRI |
＞80 |
＞80 |
＞80 |
＞80 |
|
View Angle |
120° |
120° |
120° |
120° |
|
Luminous Flux(lm) |
1085lm±10% |
1200lm±10% |
2150lm±10% |
2550lm±10% |
|
Warm white(WW) |
2800K-3000K |
2800K-3000K |
2800K-3000K |
2800K-3000K |
|
Nature white(NW) |
4000K-4500K |
4000K-4500K |
4000K-4500K |
4000K-4500K |
|
Pure White(PW) |
5500K-6000K |
5500K-6000K |
5500K-6000K |
5500K-6000K |
|
Size |
600mm |
900mm |
1200mm |
1500mm |
|
Lifespan(Hrs) |
50000 |
50000 |
50000 |
50000 |

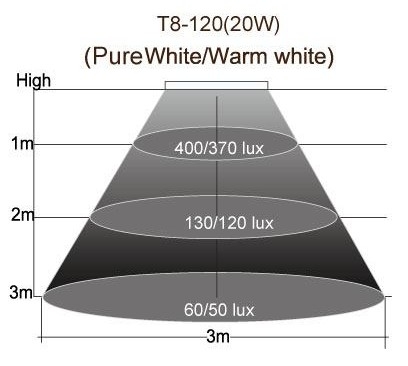

Illuminance
|
Part No |
A(lux) |
B(lux) |
C(lux) |
|
T8-10W-60 |
260 |
80 |
40 |
|
T8-12W-90 |
260 |
90 |
40 |
|
T8-20W-120 |
500 |
150 |
70 |
|
T8-24W-150 |
710 |
210 |
90 |

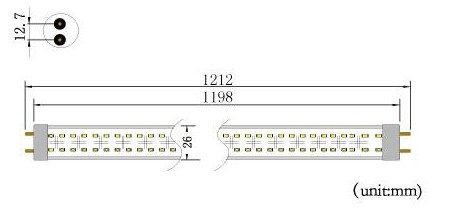

Drawing

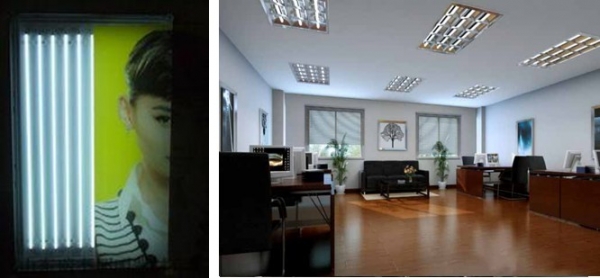

Family house, School,Office,Meeting Room
- Subway station, bus and train
- Commercial Building, Tower, Hotel, Restaurant
- Factory, Production Line, Warehouse
:
:
