3D Polishing Belt
Details
- polishing tape;diamond lapping;grinding tape;alumonum oxide(AO)lapping tape;cilicon carbide (SiC) lapping tape;crankshaft lapping tape;metal roller lapping;ceramic roller lapping;Ipad lapping;Iphone lapping;diamond polishing tape;lens lapping;ceramic lapping ;mould polishing;polishing tape;polishing belt;
-

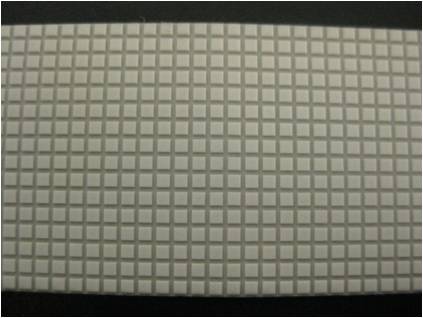

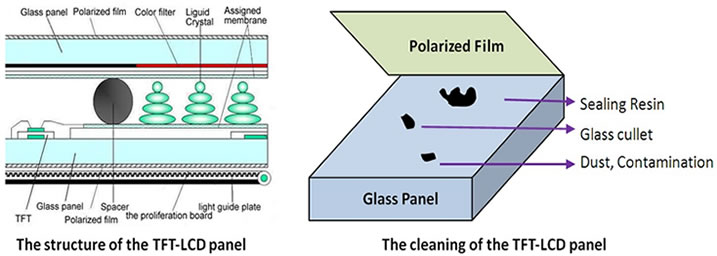

Grish 3D Polishing Belt is mainly used for removing the sealing resin, pen marks and glass cullet on the TFT-LCD panel during the Cell process prior to the polarized film attached. We have good surface and removal rate on both ITO and CF side of panel. The special designed tile structure can give the optimal capability of residue exhausting and self sharpening.
Specifications
Abrasive Aluminum Oxide (AO) Mesh 3000 4000 8000 Grit Size/µm 5 3 1 Backing Thickness /μm 170±5 Total Thickness /μm 520±20 Regular Specifications 30mm×1.6m，30mm×2.08m (Customized)
Applications
:
:
